Products: GPS Tracking Solution

Model No.: AT07-3G/4G

3G/4G GPS tracking Device

GPS tracking software platforms supporting this gps tracking device: redgps, traccar, gurtam, gpsgate, gps-server

Features

Send data to two servers simultaneously
3-Axis Digital Accelerometer movement status monitoring
GPS and GLONASS or Beidou supported simultaneously
Support DC 9v --50v , over-voltage protection
support Omicomm fuel sensor via RS232

● BeiDou and Galileo supported optionally
● Firmware upgrade by OTA
● Send commands to GPS trackers via GPRS or SMS
● Real-time tracking (Time, Distance Interval or Intelligent Mode)
● Send GPRS data to IP or domain name
● Google map link sent via SMS
● user defined settings on I/O ports: digital input, digital output
● support Omnicomm fuel sensor
High temperature and low temperature resistant battery
To see the traces of AT07, please check here:


gps tracker supporting RFID reader, camera, fuel level monitoring

Solutions supported



Description

● GSM: Quad Band@GSM; 900/2100MHz | 850/1900MHz | 850/2100MHz @3g
● u-blox GPS module with high GPS positioning accuracy
● SMS, 3G/4G TCP / UDP communications
● Real time tracking and history data traces tracking
● Track by cell phone or web based tracking software
● Multiple alarm types
● Control car doors close/open, Detect the status of engine on/off
● 16Mb Flash Memory( stores 4000pcs or so data)
● Intelligent power management: normal, sleep, deep sleep
● flash memory for data storage in GSM blind area
● Sleep mode for Saving Power and GPRS traffic
● Backup battery: 800 mAh Li Polymer battery
● Geo-fencing reports: into-Geo-fence; Out Geo-fence
● Motion sensor for vehicle motion detections
● Different GPRS data string sending intervals:
at certain interval in engine on or tremble state;
at the other interval in engine off or still state
● Flexible GPRS data sending modes by different triggers:
data sent by time interval;
data sent by distance;
data sent by course change.

alarms:

Over Speeding
Low Battery
GEO Fencing
Vibration Alert
Car Door State
External Power Off
SOS Alarm
GPS Antenna state
Engine State
Course Change
vehicle towing alert
engine idle alert



Peripherals

Standard:
GPS Antenna: 1pcs |   I/O cables: 1 set

Optional:
Relay | Door Sensor | Fuel Sensor | Camera | Temperature sensor | Microphone | Speaker | Buzzer | Ibutton Reader and Ibutton tags | RFID reader and RFID tags | LED lamp | weighing sensor | fuel consumption meter | Omnicomm fuel sensor


How is the gps tracking device configured?

● via SMS
● via gprs/3g
via configuration software

Technical Properties

External Power Supply
+12v --- +60v / 1.5A
Internal Battery
800mAh, rechargeable polymer lithium-ion battery,
anti-high temperature to 80°C
Normal power consumption
2W, 12.5W at peak
Dimension
89×55×25mm
Weight
100g
Operating temperature
-20°C to 60°C
Humidity
5% to 95% Non-condensing

Frequency

Opition: EG91-EX
FDD-LTE : B1/B3/B8/B20/B28; WCDMA: B1/B8; GSM: B3/B8
Opition: EG91-NAX
FDD-LTE: B2/B4/B5/B12/B13/B25/B26; WCDMA: B2/B4/B5

GPS

GPS Chip
u-blox UBXM8130 | AT6558R
Receiver type
50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
GPS Sensitivity
-162 dBm
Velocity Accuracy
0.1 m/s
Reacquisition
0.1 sec., average
Hot start
1 s
Warm start
1 s
Cold start
27 s
Heading accuracy
0.5 degrees
Velocity Accuracy
0.1m/s
Horizontal position accuracy
GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |
SBAS + PPP7 < 2 m (3D, R50)8
LED
3 LED lights to show GPS/GSM/Power status
Flash Memory
16Mb
Button
One SOS Button

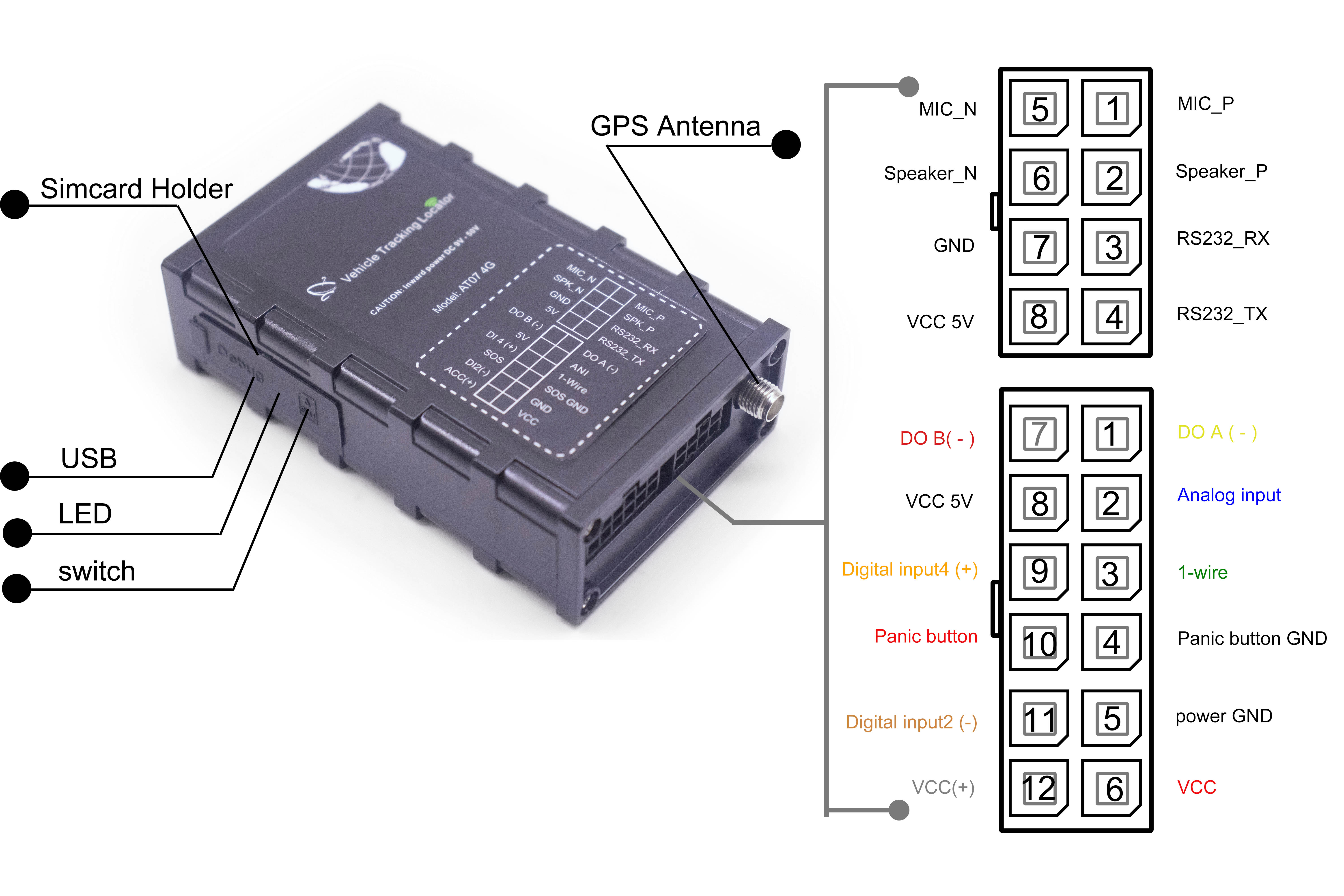

IO ports
IO ports
1 switch input, 4 digital inputs, 3 digital outputs, 1 analog inputs
serial ports
1 RS232 ports
temperature sensor
1 1-wire for temperature sensors
speaker and microphone
4 ports for voice communication
GPS
1 GPS antenna port

What benefits From GPS tracking device AT07 we can get

● Long years stability in severe environment
● More support in various peripherals. It means you can meet different needs of users
● firmawre customization support, even hardware customization support

Size:

 89×55×25mm or 3.5×2.2×0.8inch
size of gps tracker at07-3G

Packing Details


weight for 1 set device: 0.1kg
Inner box size:  15×12.5×4.5cm
W.G. for 60 sets in 1 carton:         800g
size for 1 carton:              48×37×33 cm
capacity in one carton:   60pcs box / carton
box for GPS tracker      carton for GPS tracking device
