TPMS Signal Repeater

TPMS signal repeater is used to amplify the TPMS signal when TPMS receiver display or GPS tracker or DVR is not able to receive TPMS signals if the vehicle has more than 6 wheels or it's too long. It's a significant part of tire pressure monitoring system. It also can be used as control unit based on same TPMS frequency for data communication. It can receive, process, save, forward and send data. It can communicate with other TPMS receivers on RF433.92MHz like a TPMS controller.

Features

TPMS signal repeating function
● Receive TPMS signals from sensors via RF433.92MHz.
● Forward all TPMS signals from sensors out via RF433.92MHz.
Two ways interaction
● Can be used as controller for data communication via RF433.92MHz.
● store TPMS tires data or info in flash.(optional)
TPMS data connection
● Receive data from TPMS sensors via RF433.92MHz.
● Receive data: tire pressure and tire temperature, cell battery volt, tremble status, alarm.
● Support 42 tires max simultaneously.
Dual TPMS antennas
● Support 2 external TPMS antennas for receiving TPMS signals.
● Extra 1 internal TPMS antenna for sending TPMS signals.
Waterproof IP67 Design
● Waterproof plastic casings design.
● Circular connector for IO cables.
Multiple TPMS sensors types support
● External type, internal type, banded type, air flow-through types.
● Support wireless SOS button.
Two strong magnets
● Users can place the TPMS receiver easily on the chassis or back of truck for better signal reception.
● Two strong magnets on bottom to easier installation

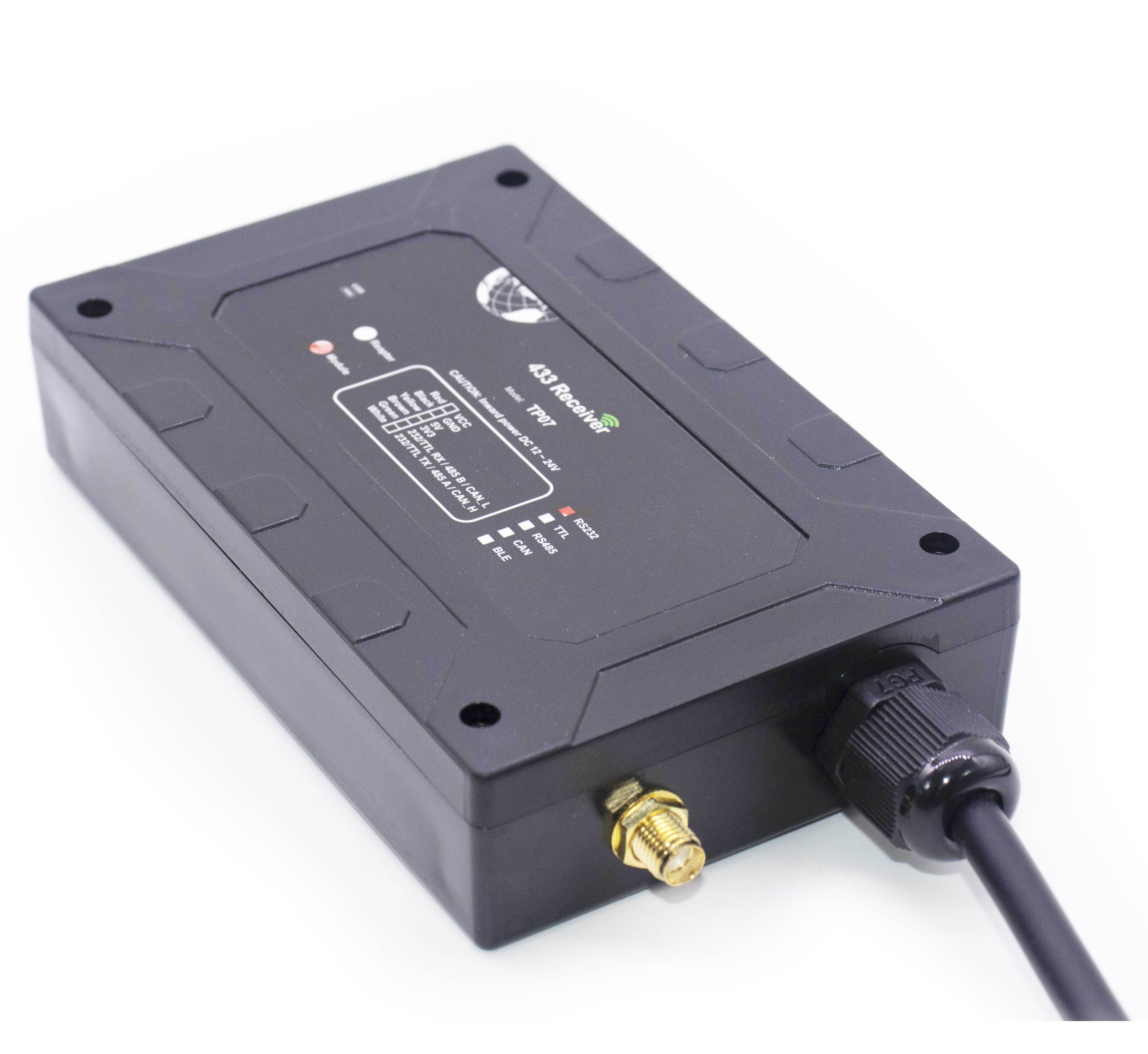

tpms receiver module for gps tracking, car DVD, car video recorder

TPMS Receiver SPECS:

ITEMS
SPECIFICATIONS
Temperature Setting Range
-20°C--93°C
Operation Temperature
-20°C--80°C
Storage Temperature
-30°C--85°C
Working Temperature
-20°C--60°C
Power Supply
DC 12V-24V
Frequency
RF410MHz to RF510MHz
receiving current
8.5mA
Emitting Current
≤85mA
Data rate
2.4kpbs

wires connection for TPMS receiverWires Description

Power wires
12V: red GND: black5V: yellow 3.3V: brown
RS232 wires
TX3: white RX3: green
TTL wires
TX: whiteRX: green
CAN wires
high: white low: green
RS485 wires
A: white B: green

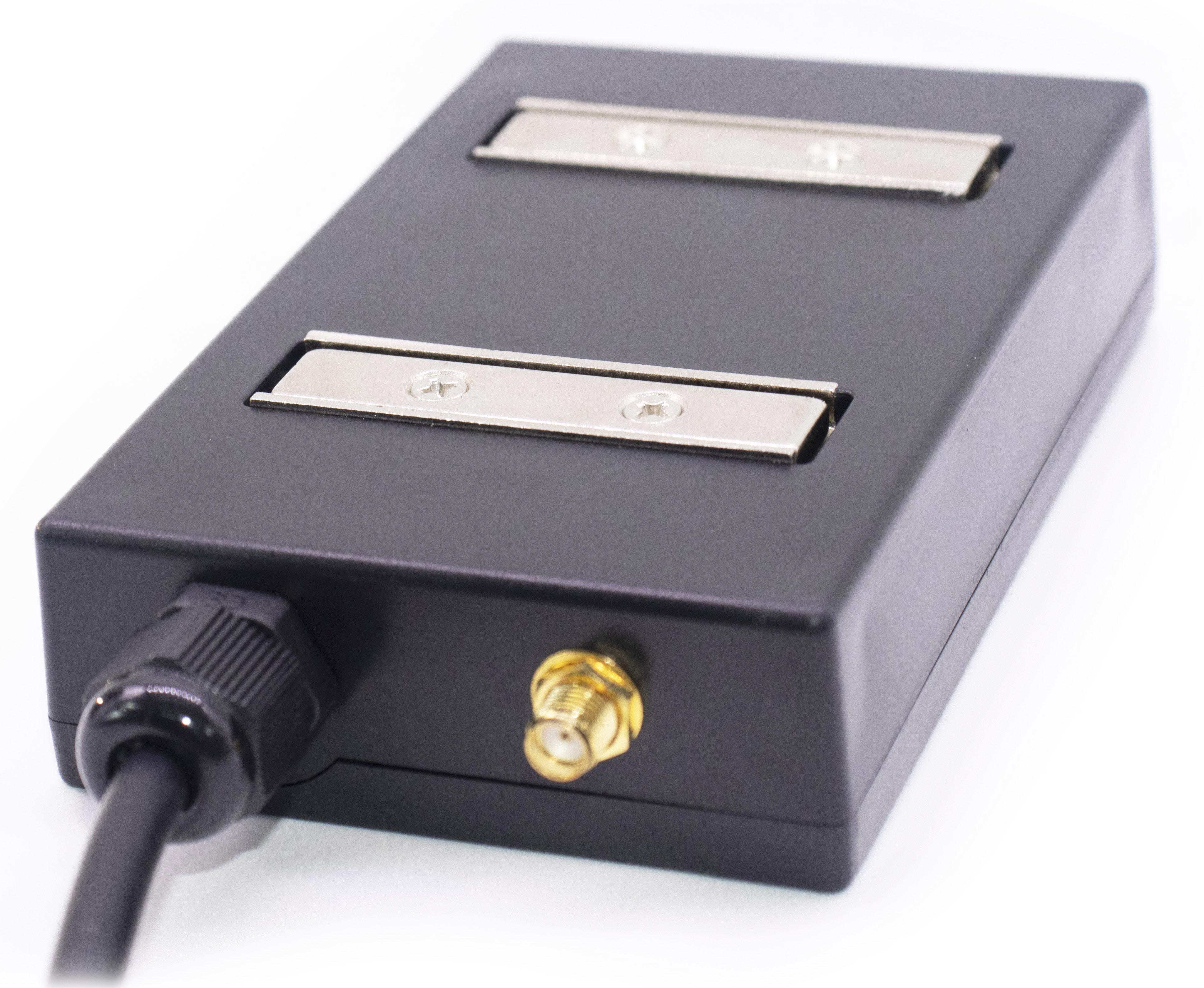

Two Magnets on Bottom of TPMS Receiver

TPMS receiver TP07, tire pressure monitoring system TP07



tire sensorsTire Pressure Sensor Specs

check here for More...

TS06: External Tire Pressure Sensor Specs:

tire pressure sensors
● Pressure Range: 1-12Bar(100kPa-1200kPa)
● Size: 21×20 mm (ø x h)
● Weight: TS06: 28g; TS06-LB: 42g
● Standby Battery life ≥4 years
● TPMS chip: SP40

TS08: Internal Tire Pressure Sensor Specs:

internal tpms sensors
● Pressure Range: 1-12Bar(14PSI-174PSI)
● Size: 150×65 ×60 mm (ø x h)
● Weight: 77g
● Standby Battery life: ≥ 4 years
● TPMS chip: SP40

TS09: Air Flow Through Tire Pressure Sensor:

air flow through tpms sensors
● Pressure Range: 1-12Bar(14PSI-174PSI)
● Size: 60×31 ×20 mm
● Weight: 25g
● Standby Battery life: more than 4 years
● ≥ 4 years
● TPMS chip: SP40

TS10: Banded Tire Pressure Sensor Specs:

air flow through tpms sensors
● Pressure Range: 1-12Bar(14PSI-174PSI)
● Size: 73×45×27 mm
● Weight: 25g(only sensor, not including strap)
● Standby Battery life: more than 4 years
● ≥ 4 years
● TPMS chip: SP40
● Strap length: 1.5meters

Benefit From TPMS Receiver Module

● Easy integration into your existing systems.
● strengthen your current systems with Tire pressure monitoring function.
● Extend the life of the Tire.
● Save your fuel consumption.
● Save your money.
● Control theTire pressure constantly.
