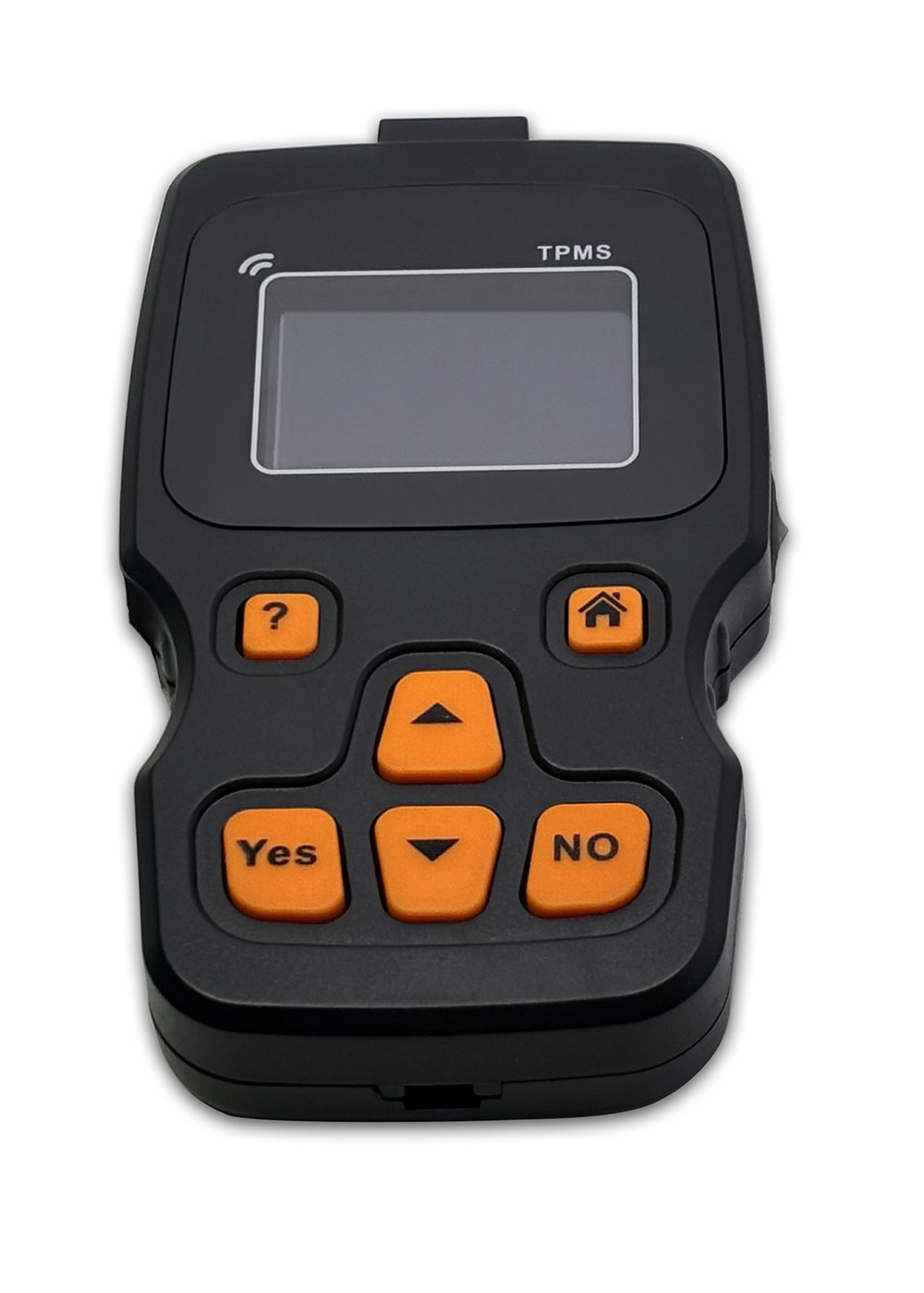

Product: Handheld ID Reader for Tire Pressure Monitoring System
Model No.: SA02
SA02 is a handheld reader which is used to activate the TPMS sensor by 125KHz and receive the unique sensor ID by
433.92MHz receiver part. It can also communicate with other devices by built in RS232, CAN or bluetooth. It can be a
controller to control other device via above interfaces after firmware customizations.
Handheld ID Reader for Tire Pressure Monitoring System
Features for handheld TPMS ID reader
Color touch screen
• 2.0 inch IPS TFT LCD.
• 240 × 320.
Multiple connection types
• RS232, CAN, bluetooth for connecting GPS tracker, DVR, DVD, etc.
• USB port.
TPMS signal
connection
• Receive data from TPMS sensors via RF433.92MHz.
Internal Battery
• 800mAh Li-polymer battery.
Technical Properties:
Temperature Setting Range
-20°C--93°C
Operation Temperature
-20°C--80°C
Storage Temperature
-30°C--85°C
screen
Screen
2.0inch TFT screen
Power
USB Input Power Supply
DC 4.5V - 6V
Charge Current
845mA or higher(1A max)
(charge current will drop accordingly up the battery voltage rise.)
TPMS SPECS
Frequency for TPMS
RF433.92MHz
Current Drain
8.5mA when receiving
Sensitivity
-111dBm to -121dBm
LF Frequency
Bluetooth | Wi-Fi SPECS
Wi-Fi
2.4G, IEEE 802.1 b/g/n
Data Forwarding
TPMS Data forwarded via bluetooth, RS232, CAN
interface
IO port Connections
1 RS232, 1 CAN, 1 USB
Tire Pressure Sensors supported by handheld TPMS ID reader
caps
tire pressure sensor: TS06
caps TPMS sensor
for large bore:
TS06-LB
internal
tire sensor: TS08
air flow through tire sensor: TS09
banded
tire sensor: TS10
Packing Details for handheld TPMS ID reader
Standard accessories:
1 RF433.92MHz external antenna

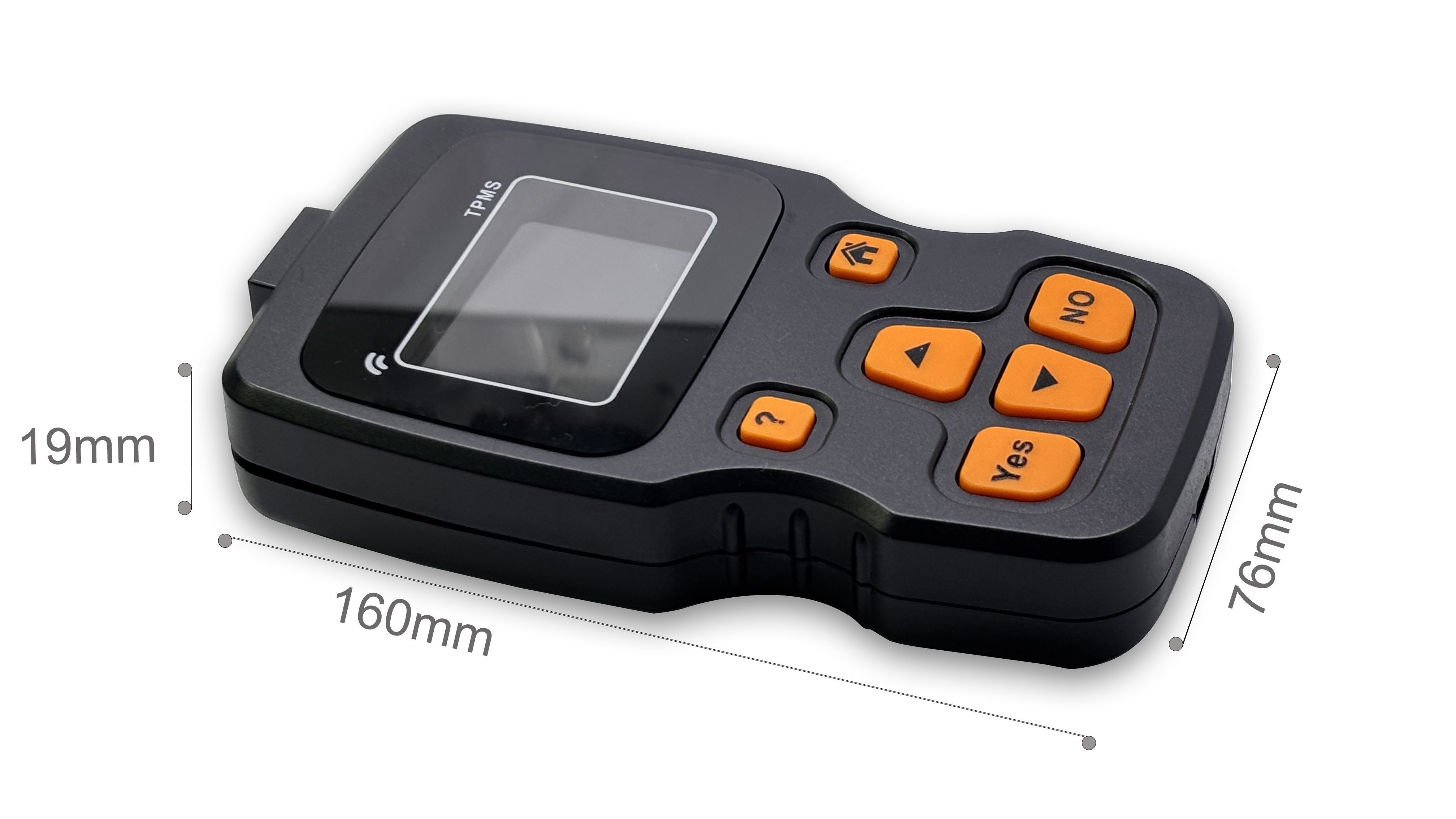

size:
160×76×19mm
