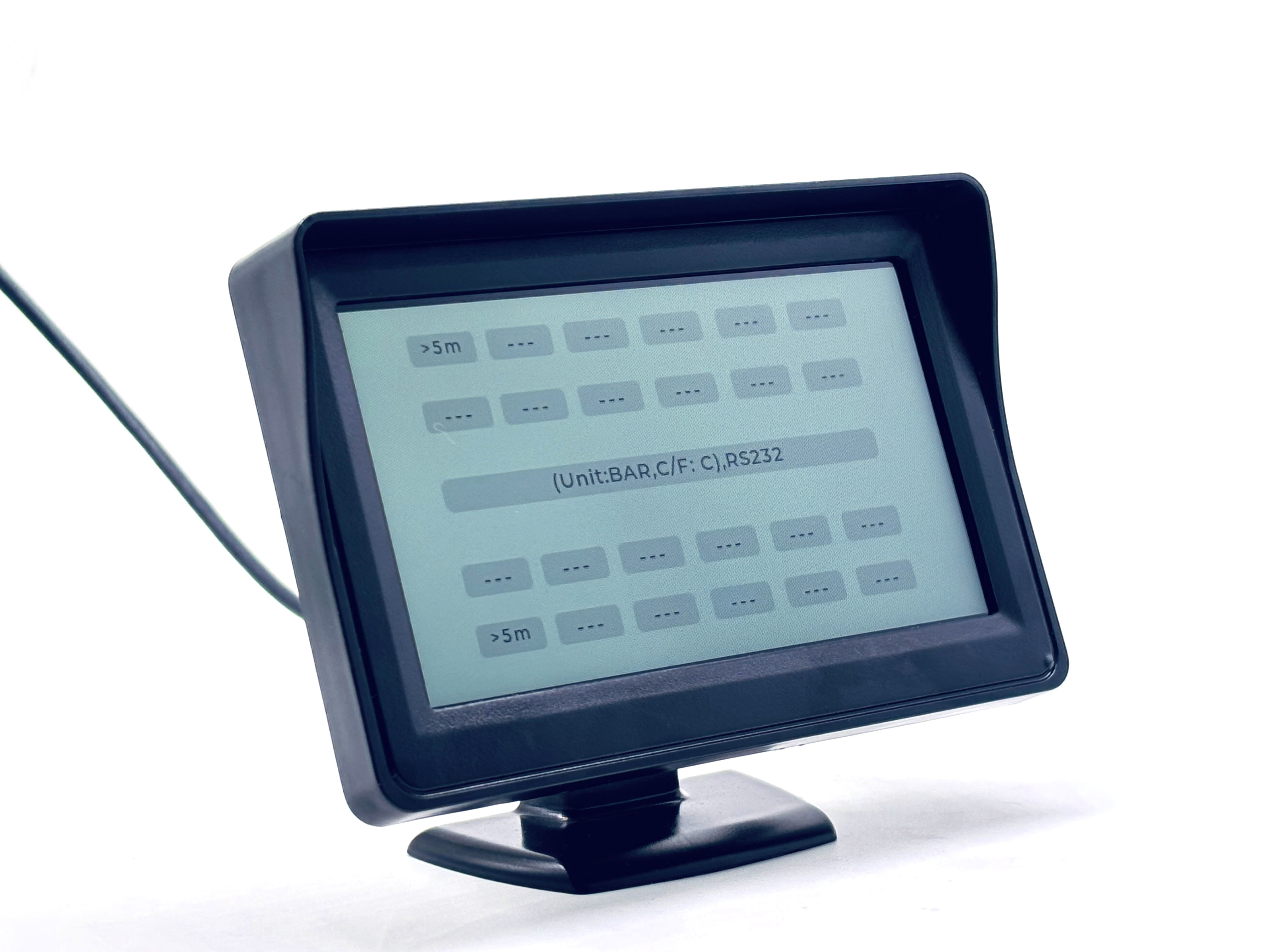

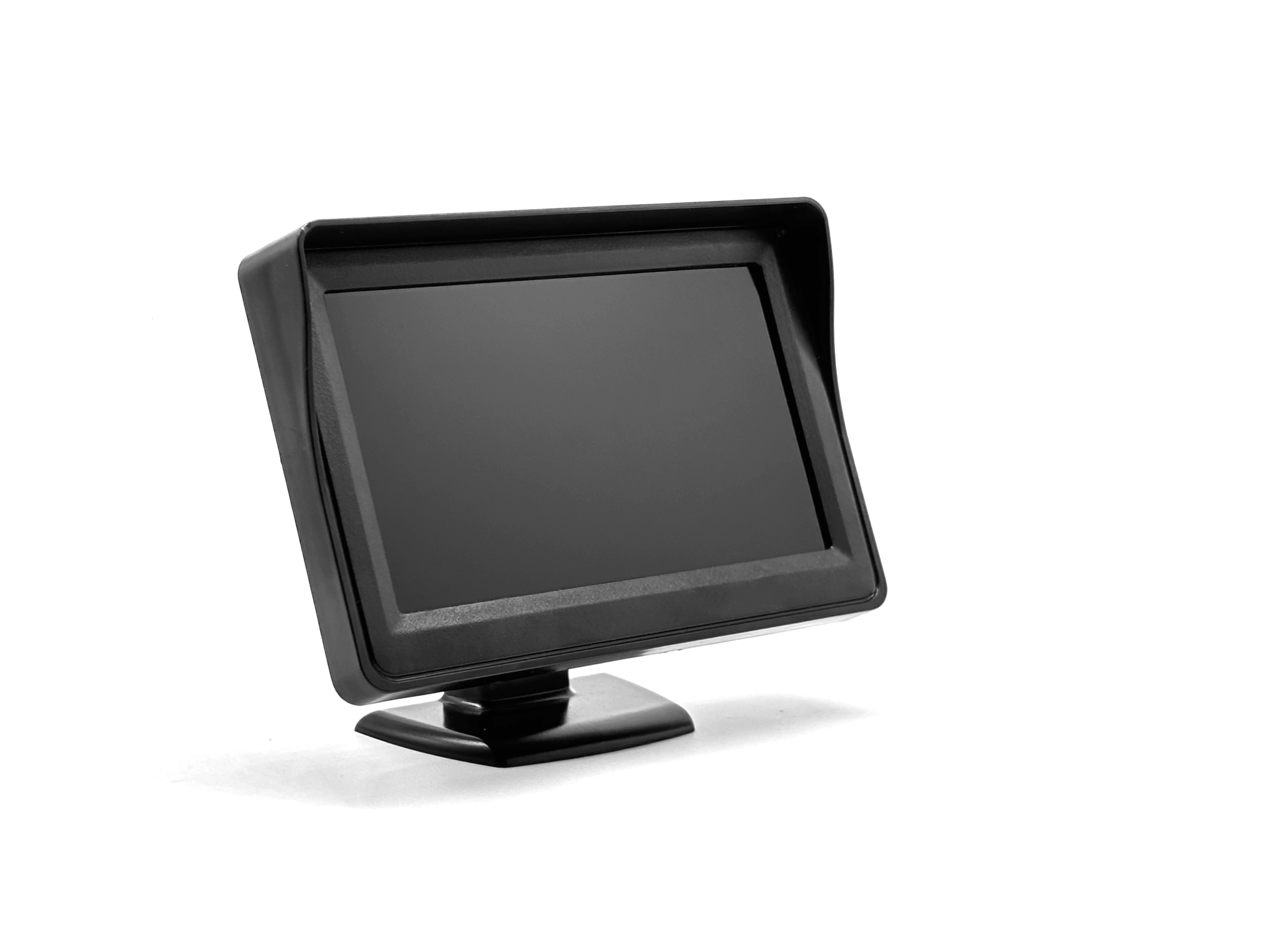

Product: Color screen Display for Tire Pressure Monitoring System
Model No.: TP09-C
TP09-C TPMS display is designed for monitoring pressure and temperature of each tire of cars,
trucks, buses, OTR tires, etc. It will alarm by issuing beeping sound and showing red icons on screen in case of abnormal pressure and
temperature to users or drivers for safety driving. Furthermore, Using this TPMS product can
save fuel, prolong tires life and make driving more comfortable.
Color screen Display for Tire Pressure Monitoring System
Features
Color screen
• 4.3 inch size.
• support different wheels layout: 4 wheels, 6 wheels 10 wheels, etc.
• support 4wheels to 24 wheels.
Multiple connection types
• RS232, CAN, bluetooth for connecting GPS tracker, DVR, DVD, etc.
• USB port.
TPMS alarms
• front low pressure, front high pressure.
• tail low pressure, tail high pressure.
• temperature alarm.
TPMS signal
connection
• Receive data from TPMS sensors via RF433.92MHz.
• 24 tires max support simultaneously.(standard version, could be more than 24tires.)
TPMS display configurable
• Unit settings. Pressure: Bar | psi. Temperature: celsius | Fahrenheit
• Tire pressure alarm settings.
• Tire layout: total tires, tires in first axle.
• Sensor and tires mappings.
Multiple TPMS sensors types
support
• external type, internal type, banded type, air flow-through types.
• Support wireless SOS button.
Dual TPMS antennas
• Support 2 external TPMS antennas for receiving TPMS signals.
• Extra 1 internal TPMS antenna for sending TPMS signals.
store TPMS Data Locally in Display(will be available soon)
• Support download TPMS data history via USB.
Support Teltonika GPS devices
• Connect to Teltonika GPS tracking device via bluetooth for Teltonika TPMS function.
• Support more than 6 tires sensors connection to Teltonika GPS device via RS232.
Compatible Vehicles Types:
car, van, bus, truck, trailer, etc.

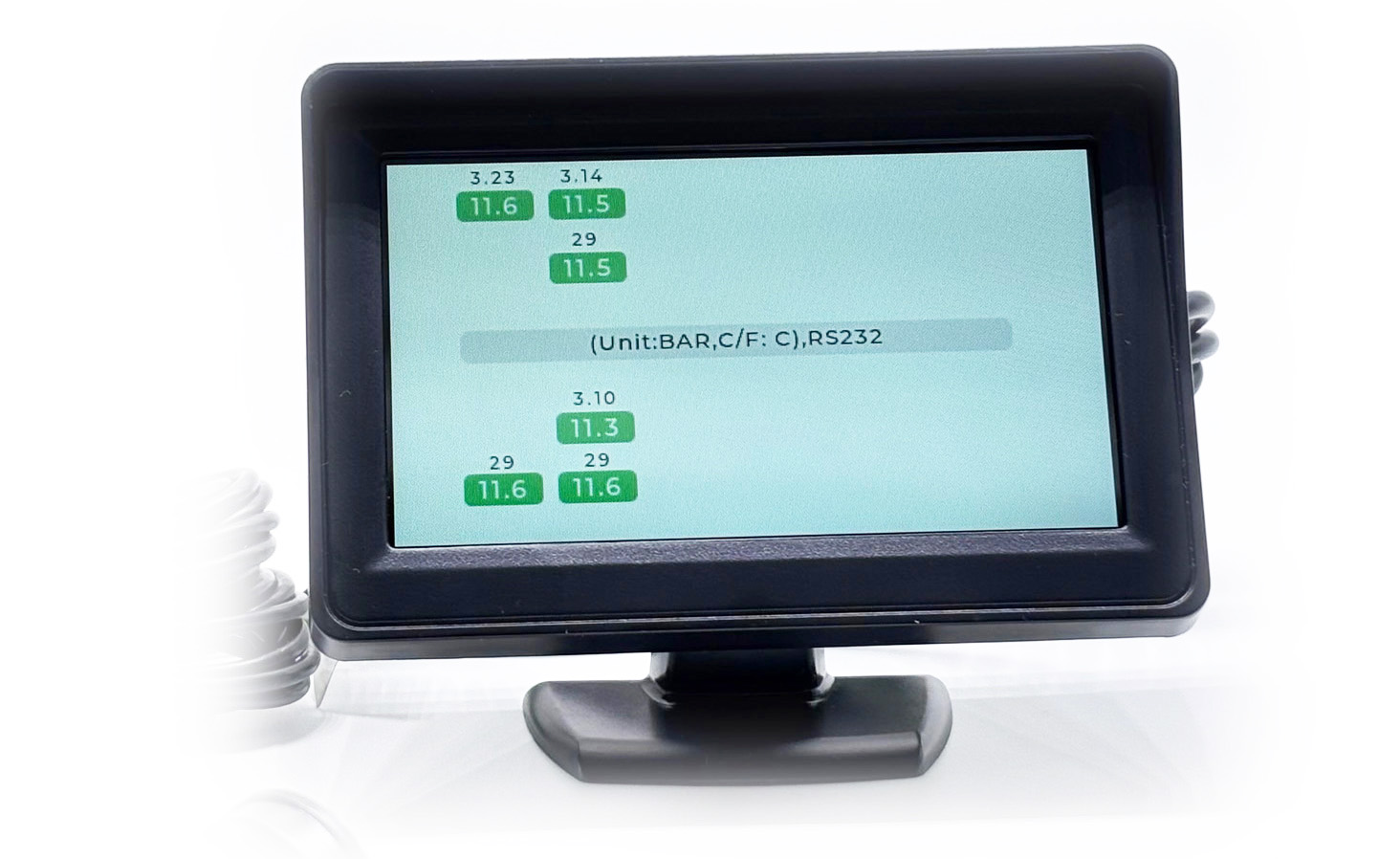

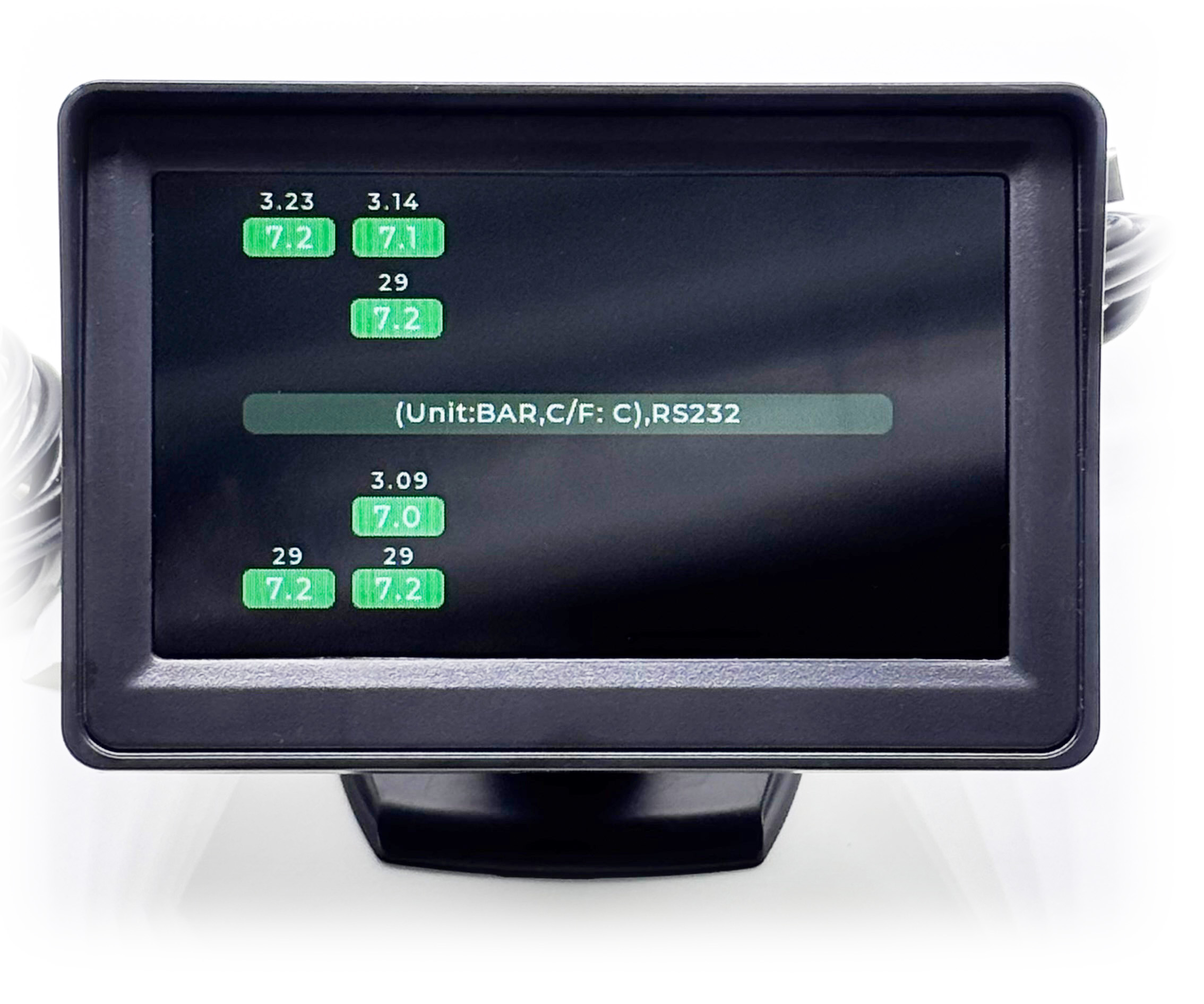

TPMS Display Screen
the TPMS display can show 24 tires status including tire position, temperature, BAR/PSI unit, F
or C temperature unit, battery status, solar powered or not, temperature alert
indicator, tire pressure alert indicator.
Technical Properties:
Display screen Specs:
Temperature Setting Range
-20°C--93°C
Operation Temperature
-20°C--80°C
Storage Temperature
-30°C--85°C
Power Supply
DC 12V; 48mA
Screen
4.3inch TFT screen

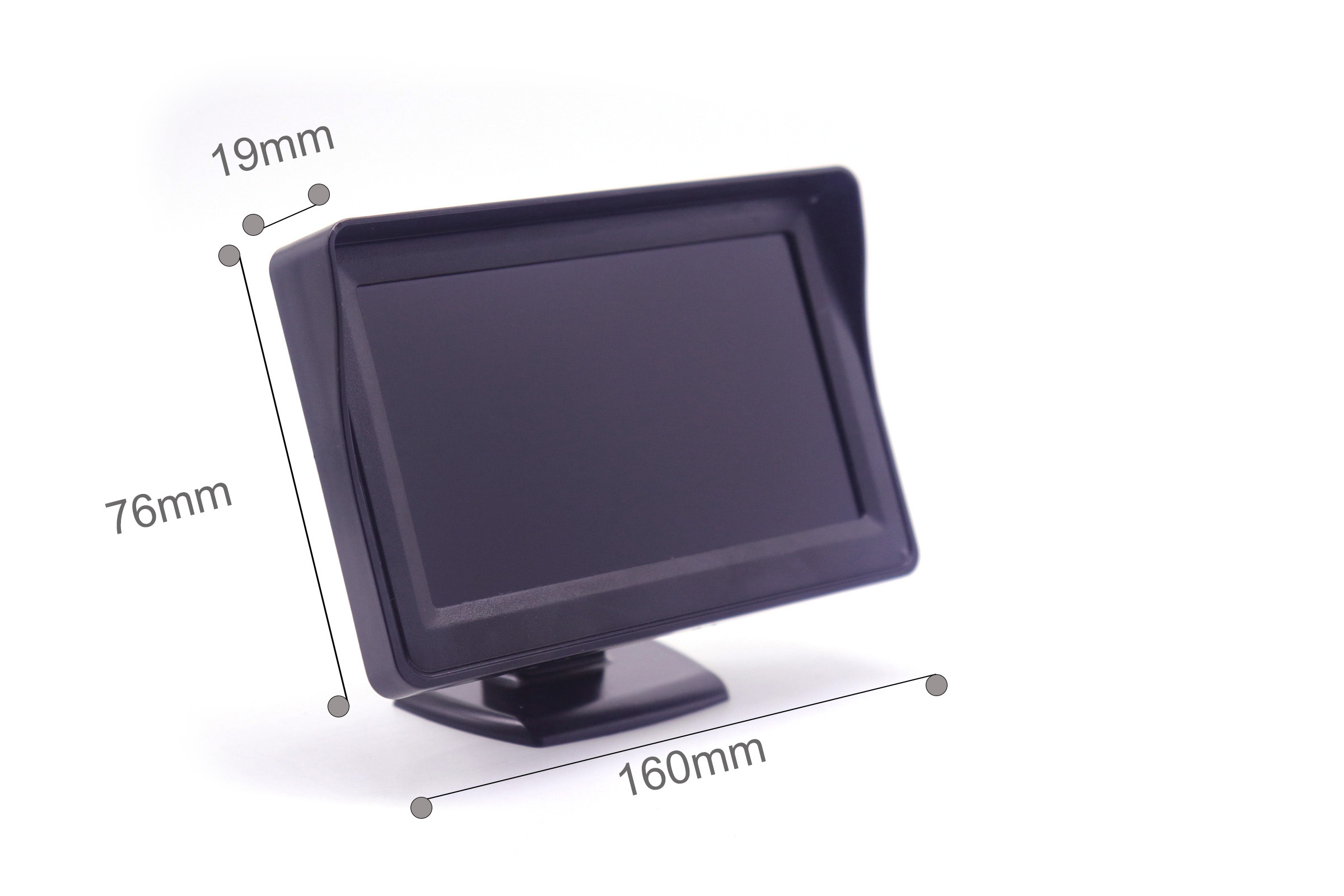

Display Screen Size
105.5 × 67.2 × 2.78 mm
Screen Data Format
RGB565
Screen Showing Format
480 ×RGB × 272 graphic dot matrix
TPMS SPECS
Frequency for TPMS
RF433.92MHz
Frequency Range
213MHz to 960MHz
Modulation & Demodulation Method
OOK, (G)FSK, (G)MSK
Emitting Current
27mA@13dBm, 92MHz FSK
Sensitivity
-120 dBm at 2.4kbps, F(RF)=433.92MHz
-109 dBm at 50kbps, F(RF)=840MHz
-109 dBm at 50kbps, F(RF)=920MHz
Data Forwarding
TPMS Data forwarded via bluetooth, RS232, CAN
Data Memory(optional)
TPMS data can be saved into TF card.
IO port Connections
RS232, CAN, bluetooth, USB
Alarm Notifications
turning red on specific tire icon on screen;
release beeping sound
Tire Pressure Sensors supported by our GPS tracking device and TPMS display
caps tire pressure sensor: TS06
caps TPMS sensor
for large bore:
TS06-LB
internal tire sensor: TS08
air flow through tire sensor: TS09
banded tire sensor: TS10
tire sensors installed on vehicles on sites
Benefit From Tire Pressure Monitoring System
• Extend the life of the tire.
• Save your fuel consumption.
• Save your money.
• Control the tire pressure constantly.
• Release your attention from tire and more safety.
• No more tire break-ups due to running tires under inflated.
Packing Details(standard)
Standard accessories:
1 RF433.92MHz external antenna
size:
