Relay installed into vehicle's circuit of engine or car door can be controlled by GPS tracker or dashcam or DVR wirelessly via bluetooth or Wi-Fi.
• Bluetooth | Wi-Fi support
Bluetooth | Wi-Fi connection to connect to GPS tracker or DVR wirelessly. Users can choose bluetooth or Wi-Fi to communicate with relay wirelessly in their own using environment.
• Easy installation
Free of wires connection to GPS tracker or DVR. Users just connect two power cables, and two cables integrated into original cable. Just cut it into two and reconnecting them again with the two cables of relay.
forget about the 87, 87a, 85, 86 wires. They are not existing any longer in relay installation.
• Simple protocol implementation
Users can integrate the simple protocol into their own system easier.
Technical Properties for Wi-Fi|Bluetooth relay
wires
1 power cable, 1 GND cable, 2 connection cables for circuit you want to control
Internal Battery
800mAh, rechargeable polymer lithium-ion battery,
anti-high
temperature to 80°C
Normal power consumption
2W, 12.5W at peak
Operating temperature
-20°C to 60°C
Humidity
5% to 95% Non-condensing
Bluetooth
bluetooth
bluetooth V4.2 BR/EDR & bluetooth LE
Class 1, Class 2 and Class 3 emitter
Wi-Fi
150mbps max in 802.11n mode
A-MPDU and A-MSDU CLUSTER
0.4μS protection interval

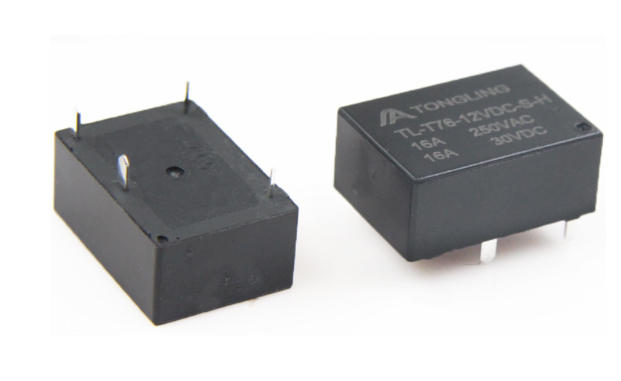

Relay Module
Rated Coil Voltage
DC 12V
Switch Current Voltage
250VAC/24VDC
contact disconnect time
8ms
Load Voltage Max
16A 250VAC
Contact Mode
normally open
ideal Use Cases
•Private Cars:
protect private car and assets, offer 4G connectivity for internet surfing.
•Logistics & Transportation Companies:
Protect cargo, verify deliveries, and monitor driver performance.
•Construction & Mining Fleets:
Secure valuable equipment on-site and monitor vehicle usage.
•Service & Delivery Fleets:
Improve customer service with verified proof-of-service and optimize routes.
•Public Transit & School Buses:
Ensure passenger and driver safety with comprehensive in-vehicle monitoring.
Packing Details:
net weight for 1 AT09:150g
weight for 1 set: 800g
weight for 1 carton: 600g
size for 1
carton: 48×37×33 cm
30pcs box / carton
