Products:TPMS Receiver
Model No.: TP07
TPMS Receiver addon to system
TPMS receiver TP07 is designed to offer comprehensive TPMS data to other hardware like GPS tracker or DVD or DVR via RS232 or RS485 or CAN or TTL or bluetooth.
As a productivity and safety related subsystem on vehicle, TPMS receiver TP07 can enhance clients' own systems by offering tires data continuously as tires management.
If you want the tires data to your own server directly, you can try GPS tracking device AT09;if you want the tires data to your own hardware, you can try TPMS receiver TP07;
if you want the driver to know the tires data directly in cab. you can try TPMS display TP09.
Features
Multiple connection types
• RS232, RS485, CAN, TTL, bluetooth for connecting GPS tracker, DVR, DVD, etc. RS232 is enabled in default. If you need other connections like CAN or bluetooth, please enable it on configuration software.
• USB port for debugging and configuration and test. USB port is also the power source to support its working order.
Easy data parsing and simple logic
• Simple protocol to let users parse TPMS data easily.
• Forward all raw data to other devices immediately.
Bluetooth connection
• Forward TPMS data out via bluetooth.
TPMS signal connection
• Receive data from TPMS sensors via RF433.92MHz.
• 42 tires support max simultaneously.
iOS | Android APP supported
• Users can use our own APP in daily life or for testing sensors.
Dual TPMS antennas
• Support 2 external TPMS antennas for receiving TPMS signals.
• Extra 1 internal TPMS antenna for sending TPMS signals.
Waterproof, heat resistant and dustproof and sunproof design
• waterproof and dustproof plastic case design. PC + ABS plastic material support heat resistant and sunproof design. No matter in what weather conditions, the TPMS receiver can work well.
• waterproof circular connector for IO cables.
Multiple TPMS sensors types support
• external type, internal type, banded type, air flow-through types.
• Support wireless SOS button.
Two strong magnets on bottom to better installation
• With the 2 magnets on bottom of TPMS receiver, it can be easily attached to chassis or bottom of vehicles.
Support Teltonika GPS devices
• Connect to Teltonika GPS tracking device via bluetooth for Teltonika TPMS function.
• Support more than 6 tires sensors connection to Teltonika GPS device via RS232.
TPMS Receiver SPECS:
Temperature Setting Range
-20°C--93°C
Operation Temperature
-20°C--80°C
Storage Temperature
-30°C--85°C
Working Temperature
-20°C--60°C
Frequency
RF410MHz to RF510MHz(RF433.92MHz)
IO
1 digital input, 1 digital output, 1 RS232, 1 RS485, 1 CAN, 1 TTL

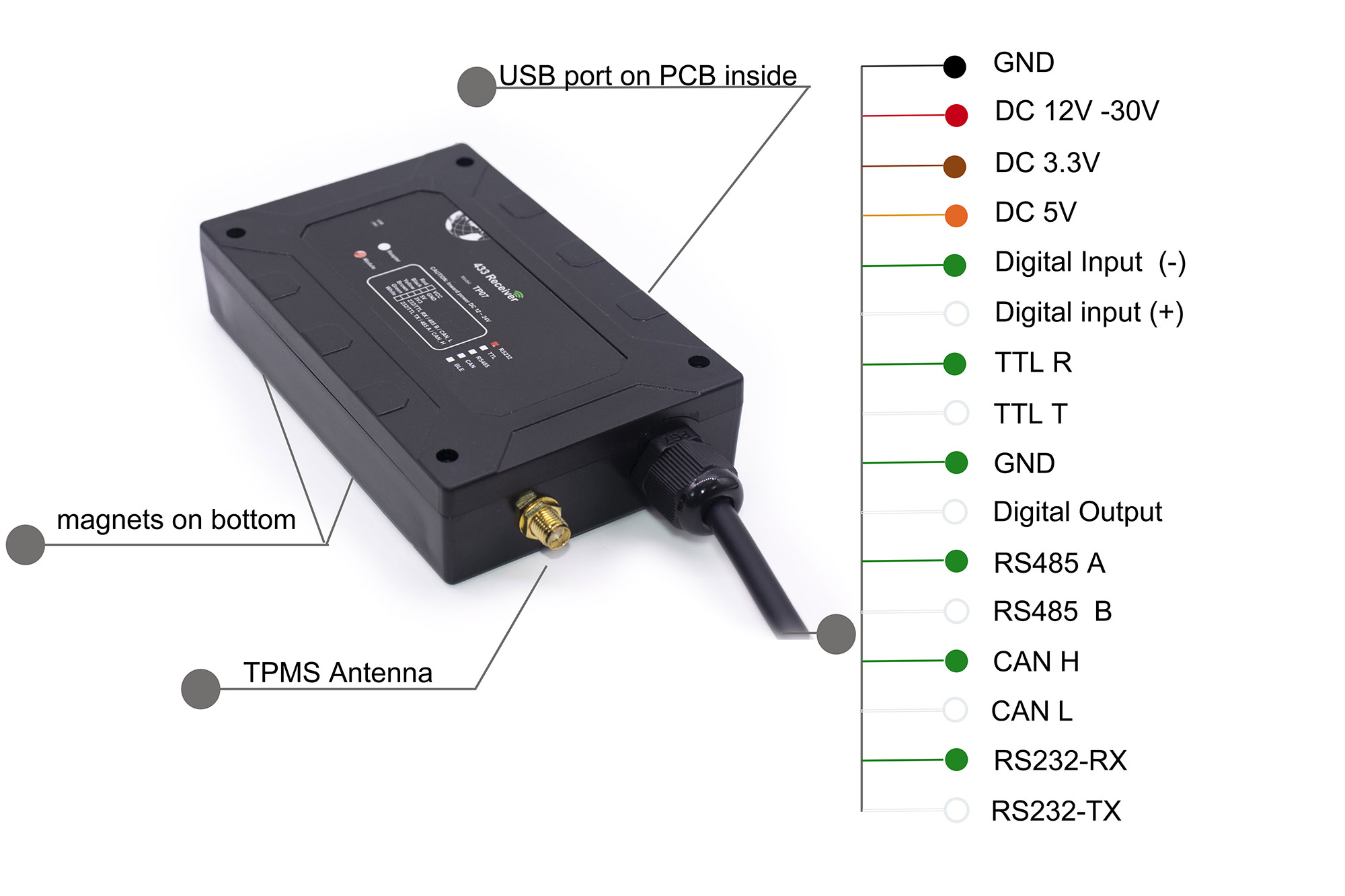

Wires Description
Power wires
12V: red GND: black5V: yellow 3.3V: brown
RS232 wires
TX3: white RX3: green
TTL wires
TX: whiteRX: green
CAN wires
high: white low: green
RS485 wires
A: white B: green

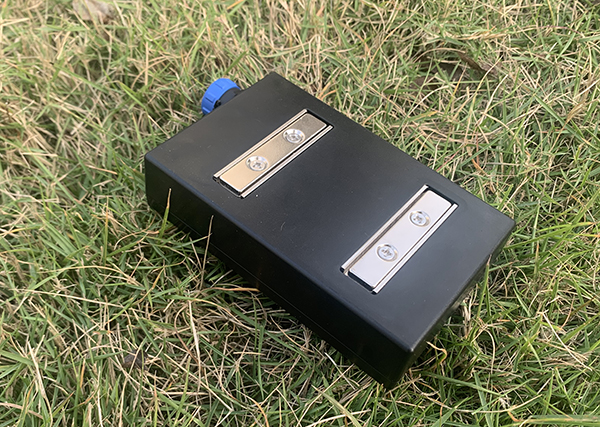

Two Magnets on Bottom of TPMS Receiver
TPMS Receiver Bluetooth SPECS:
Supported data rates
1 Mbps, 2 Mbps, Long Range 500 kbps, Long Range 125 kbps
Power consumption
30 µA/MHz
TX power
-20 dBm to + 7dBm
How to use this TPMS receiver?
user manual for TPMS receiver TP07
know more
How to use this TPMS Configurator?
user manual for TPMS Configurator
know more
Integration with Teltonika GPS
To see how you connect the TPMS receiver TP07 to FMC125 or FMC650, you can check here.
know more

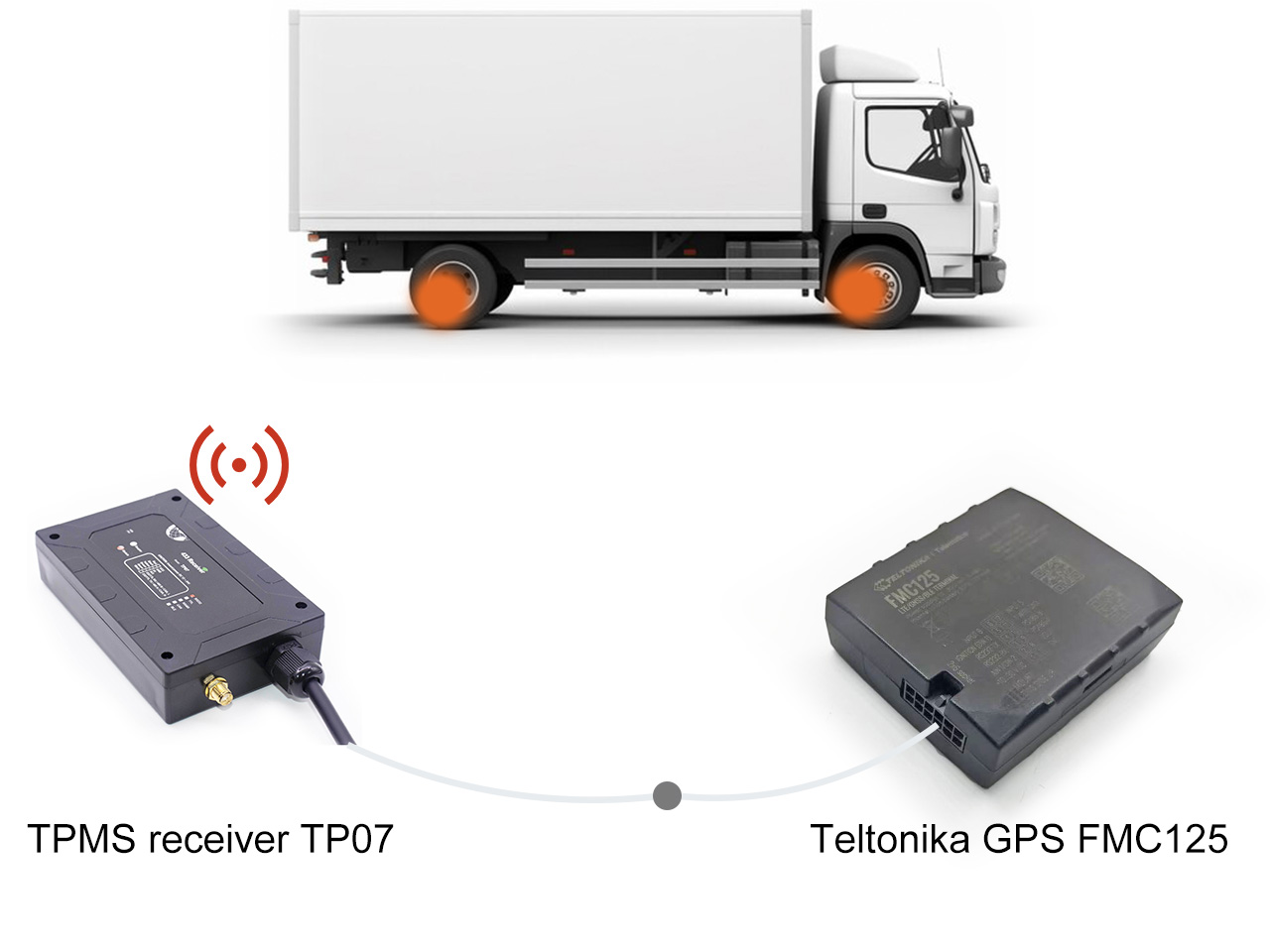

integration with FMC125
connect TX of RS232 of TP07(white wire) to RX of RS232 of FMC125(white wire), and do some settings on TPMS receiver and FMC125.

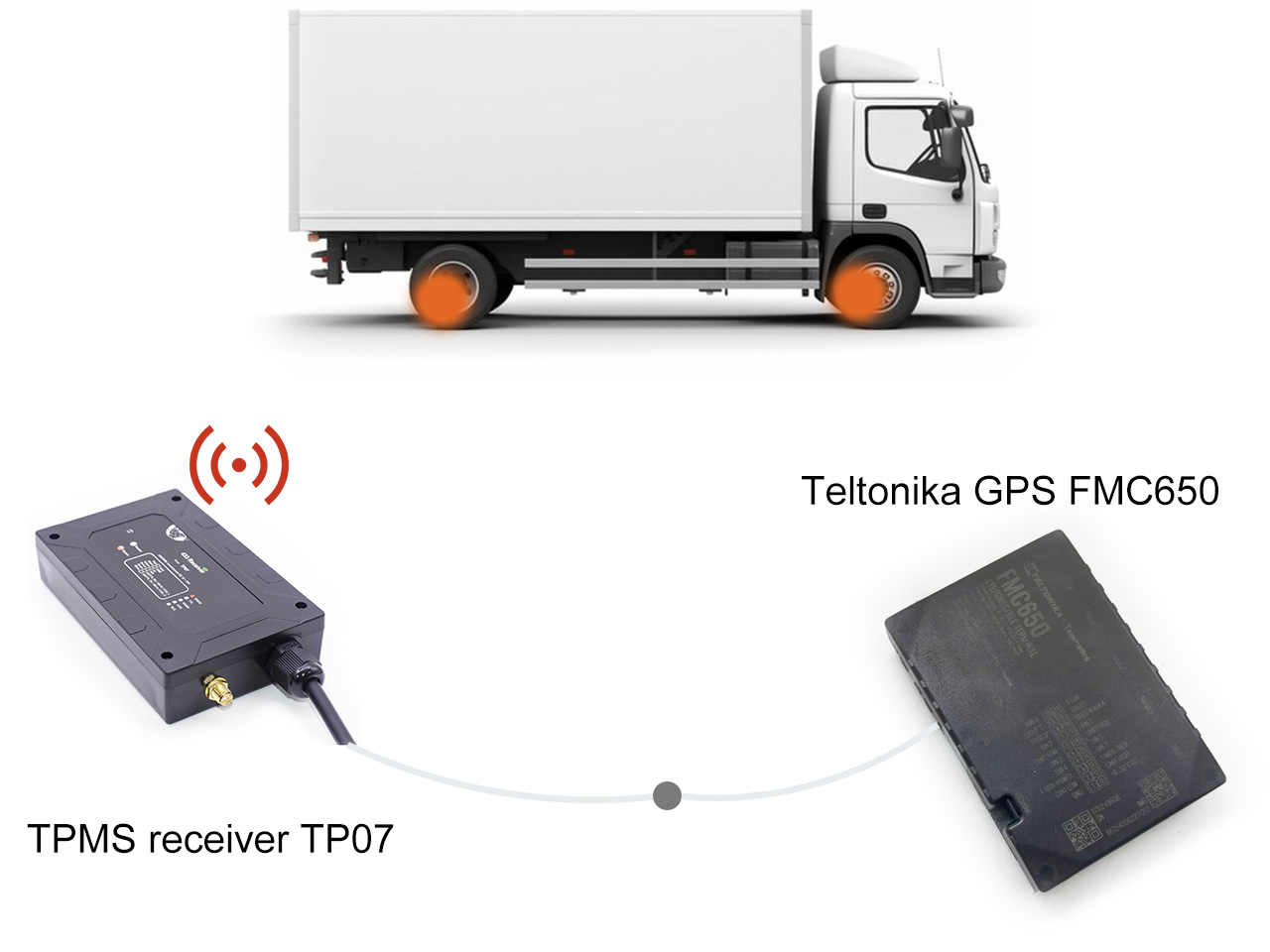

integration with FMC650
connect TX of RS232 of TP07(white wire) to RX of RS232 of FMC650(white wire), and do some settings on TPMS receiver and FMC650.
TPMS APP on bluetooth connection
• realtime show 42 tires realtime
• support binding sensors to tires by self learning or from sensors list detected neearby
• realtime alert and data notifications
• tire and sensor settings
Tire Pressure Sensor Specs
check here for More...
TS06: External Tire Pressure Sensor Specs:
• Pressure Range: 1-12Bar(100kPa-1200kPa)
• Size: 21×20 mm (ø x h)
• Weight: TS06: 28g; TS06-LB: 42g
• Standby Battery life ≥4 years
• TPMS chip: SP40
TS08: Internal Tire Pressure Sensor Specs:
• Pressure Range: 1-12Bar(14PSI-174PSI)
• Size: 150×65 ×60 mm (ø x h)
• Weight: 77g
• Standby Battery life: ≥ 4 years
• TPMS chip: SP40
TS09: Air Flow Through Tire Pressure Sensor:
• Pressure Range: 1-12Bar(14PSI-174PSI)
• Size: 60×31 ×20 mm
• Weight: 25g
• Standby Battery life: more than 4 years
• ≥ 4 years
• TPMS chip: SP40
TS10: Banded Tire Pressure Sensor Specs:
• Pressure Range: 1-12Bar(14PSI-174PSI)
• Size: 73×45×27 mm
• Weight: 25g(only sensor, not including strap)
• Standby Battery life: more than 4 years
• ≥ 4 years
• TPMS chip: SP40
• Strap length: 1.5meters
Benefit From TPMS Receiver Module
• Easy integration into your existing systems.
• strengthen your current systems with Tire pressure monitoring function.
• Extend the life of the Tire.
• Save your fuel consumption.
• Save your money.
• Control the tire pressure constantly.
