Model No.: AT09
2g signal of gsm/gprs gps tracker

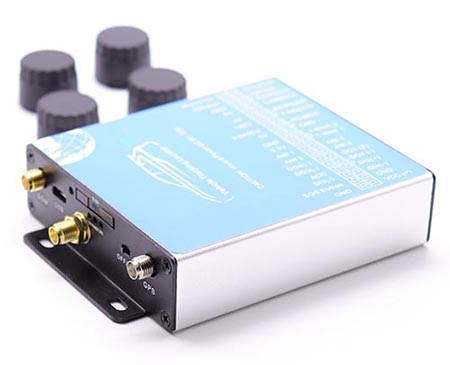

advanced gps tracker + TPMS

Supported in world popular GPS tracking software platforms:
www.traccar.org    www.gurtam.com    www.gpsgate.com   www.gps-server.net


Tire Pressure monitoring online in Realtime
4 fuel sensors monitoring simultaneously
2 temperature sensors monitoring simultaneously
• Send data to two servers simultaneously
• GPS and GLONASS supported simultaneously
• BeiDou and Galileo supported optionally
• Three serial ports supporting multi devices: display, camera,
   RFID reader, Garmin Navigator, etc.
• Real time tracking and history data traces tracking
• 3-Axis Digital Accelerometer movement status monitoring
• Firmware update by OTA
• Support DC 9v --50v , over-voltage protection
• Send commands to GPS trackers via GPRS
• Send GPRS data to IP or domain name
• 16Mb Flash Memory( stores 4000pcs or so data)
• Fuel/oil level detection with high accuracy
• Google map link sent via SMS
• Voice monitoring function with microphone
High temperature battery for severe car environment

To see the traces of AT09, please check here:
gps tracker with camera, RFID reader, LCD display, fuel level monitoring system

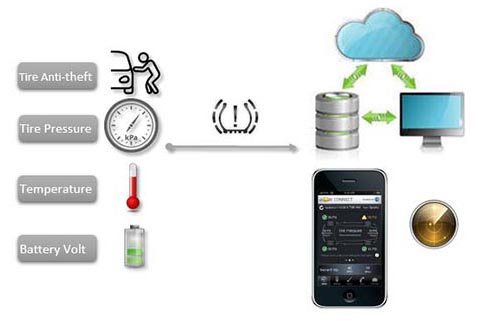

HIGHLIGHT: Tire Pressure Monitoring in GPS Tracking

tire pressure monitoring in realtime online gps tracking
• Anti tires theft Realtime
• Monitoring tires pressure, tires temperature, sensor volt online
• alarms for tires pressure, tires temperature, sensor volt to server, APP
• alarm tire pressure value adjustable
• Replaceable battery for valve-cap sensor: CR1632
• valve-cap external sensors
• Anti theft sensors mounting design
• Intelligent power consumption on 3-Axis digital Accelerometer
• 42 tire pressure sensors maximum supported
• Reduce tires maintenance cost, save clients money
Click here for More...

Description for GPS tracking

• GSM: Quad-band: GSM850 / E-GSM900 / DCS1800 / PCS1900
• U-blox GPS module with high GPS positioning accuracy
• Voice SMS, GPRS TCP / UDP communications
• Track by cell phone or web based tracking software
• Real-time tracking (Time, Distance Interval or Inbtelligent Mode)
• Alarm types: Over-speed, Low power,
  Tremble, Parking, SOS,exterior power off
• Control car doors close/open, Detect the status of engine on/off
• Real-time tracking (Time, Distance Interval or Intelligent Mode)
• Intelligent power management: normal, sleep, deep sleep
• Different GPRS data sending modes for saving GPRS traffic:
           sending data in engine on or tremble state;
           stop sending data in engine off or still state
• 16Mb flash memory for data storage in GSM blind area
• Sleep mode for Saving Power and GPRS traffic
• Backup power: 800 mAh Li-polymer battery
• Internal power low / lost alarm
• Geo-fencing reports
• Motion sensor for vehicle motion detections
                gps tracker with camera, RFID reader, LCD display, fuel level monitoring system

gps tracker with camera, RFID reader, LCD display, fuel level monitoring system

Alarm Events

Over-Speeding | Low battery | Geo-Fencing | Vibration Detect| Car Door Status | Power Supply Off | Panic Alert | GPS Antenna Cut | Engine Status | Course Change | gsm Jammer Detect

You want to know any Solutions supported by AT09?

fuel level monitoring
Garmin navigation
OBDII monitoring
camera monitoring
RFID reader identification
Mobileye: Advanced Driver Assistance Systems (ADAS) systems
iButton reader verification system
Biometric finger prints reader
magnetic stripe reader identification
tire pressure monitoring tracking


GSM Antenna: 1pcs | GPS Antenna: 1pcs | TPMS RF433.92MHz antenna: 1pcs | I/O cables: 1 set

Optional accessories:
OBD module | Relay | Door Sensor | Fuel Sensor | Camera | Temperature sensor | Microphone | Speaker | Buzzer | iButton Reader and iButton tags | RFID reader and RFID tags | LED lamp | weighing sensor | fuel consumption meter

Technical Properties

 Power Supply  +12v --- +60v / 1.5A
 Internal Battery  800mAh, rechargeable polymer lithium-ion battery,
 anti-high temperature to 80°C
Normal power consumption  2W, 12.5W at peak
 Dimension  112*80*25mm
 Weight  150g
 Operating temperature  -20° to 60° C
 Humidity  5% to 95% Non-condensing
 Frequency  Quad Band GSM 850/900/1800/1900Mhz
 GPS Module   u-blox UBX-G7020 KT
 GPS Sensitivity  -162 dBm
 Receiver type  50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
 Horizontal position accuracy  GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |
 SBAS + PPP7 < 2 m (3D, R50)8
 Velocity Accuracy  0.1 m/s
 Reacquisition  0.1 sec., average
 Hot start  1 s
 Warm start  1 s
 Cold start  27 s
 Heading accuracy  0.5 degrees
 Velocity Accuracy  0.1m/s
 LED  3 LED lights to show GPS/GSM/Power status
 Flash Memory  16Mb
 Button  One SOS Button
 Interface  1 switch input, 4 digital inputs , 4 digital outputs, 4 analog inputs,
  2 RS232 ports, 1 RS485 port, 2 1-wires for temperature sensors, 4 ports for voice communication
 TPMS Frequency  RF433.92MHz
 TPMS chip  ATA5428; SP37.
 TPMS sensor Battery  Lithium-Manganese Button Cell Battery
 working temperature: -40°C--125°C
 TPMS Pressure Range  1-4.5Bar(100kPa-450kPa);
 contact part with tire stem  anti-erosion brass
 TPMS Pressure Range  1-4.5Bar(100kPa-450kPa);
 Pressure Accuracy  +-1.5psi
 Temperature accuracy  +-3°C
 Transmission power  <=10dBm
 Standby Battery life  >=3 years

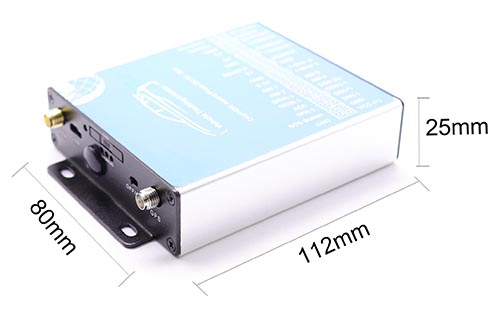

size of gps tracker at09-tpms

Packing Details:

net weight for 1 AT09:150g | weight for 1 set: 800g | weight for 1 carton: 600g | size for 1 carton: 48*37*33 cm | 30pcs box / carton

box for GPS tracker      carton for GPS tracker
